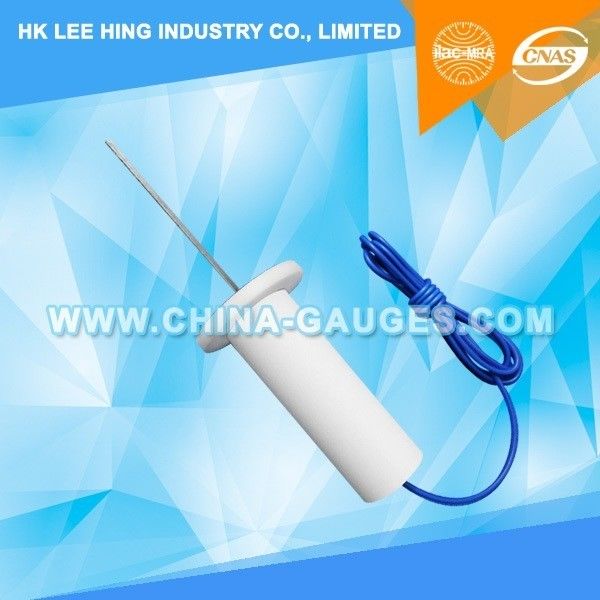

Socket-outlets Protection Accessibility Probe Test Pin with 20N Force of IEC60884

: Large Image : Socket-outlets Protection Accessibility Probe Test Pin with 20N Force of IEC60884

Product Details:

Place of Origin:	Made in China
Brand Name:	JLX
Certification:	ISO 17025 CNAS & ILAC Test Report
Model Number:	LX-20N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Export standard packing
Delivery Time:	5 working days
Payment Terms:	T/T, Western Union
Supply Ability:	200 per month

Contact Now

Detailed Product Description

Standard:	IEC60884

IEC60884-1 Figure 9 Socket-outlets Protection Test Gauge with 20N Force

Basic Introduction:

1. According to : IEC 60884 Fig 9

2. The test probe is used for household and similar electrical appliances of necessary protection of against electric shock test apparatus; Gauge for checking non-accessibility of live parts, through shutters, and of live parts of socket-outlets with increased protection.

Technical Parameters:

Gauge: 3mm*1mm(wide * thick);

Diameter: φ1.0mm

Test probe length: 80mm

Force: 20N

Material: The handle is made of nylon, tip is made of hardened steel

To calibrate the gauge, a push force of 20 N is applied on the steel rigid wire in the direction of its axis:

the characteristics of the gauge internal spring shall be such that the surface A – A′ is brought practically to the same level as the surface B – B′ when this force is applied.

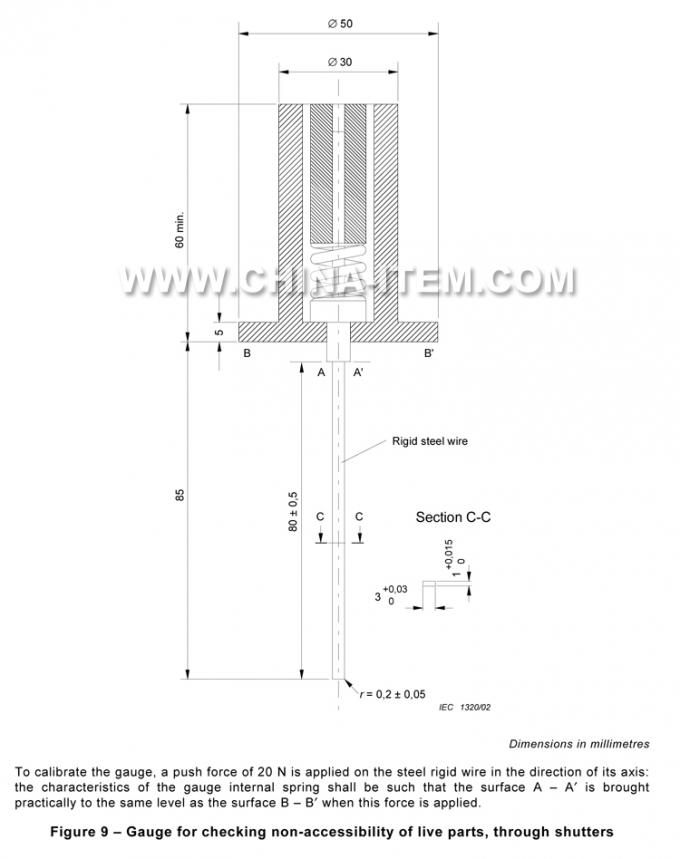

Figure 9 – Gauge for checking non-accessibility of live parts, through shutters

Socket-outlets Protection Accessibility Probe Test Pin with 20N Force of IEC60884
