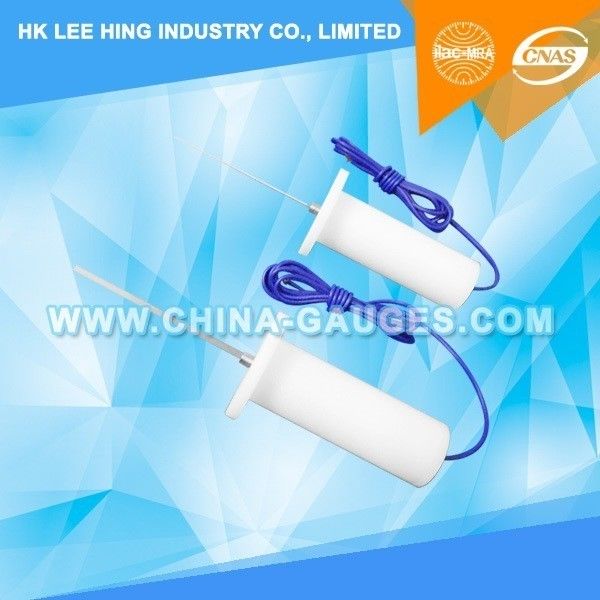

Test Probe with Force for IEC60884 Fig 9 & IEC60884 Fig 10

Large Image : Test Probe with Force for IEC60884 Fig 9 & IEC60884 Fig 10

Product Details:

Place of Origin:	Made in China
Brand Name:	JLX
Certification:	ISO 17025 CNAS & ILAC Test Report
Model Number:	LX-CZ12

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Aluminum Box
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union
Supply Ability:	500 per month

Contact Now

Detailed Product Description

Standard:	IEC 60884-1

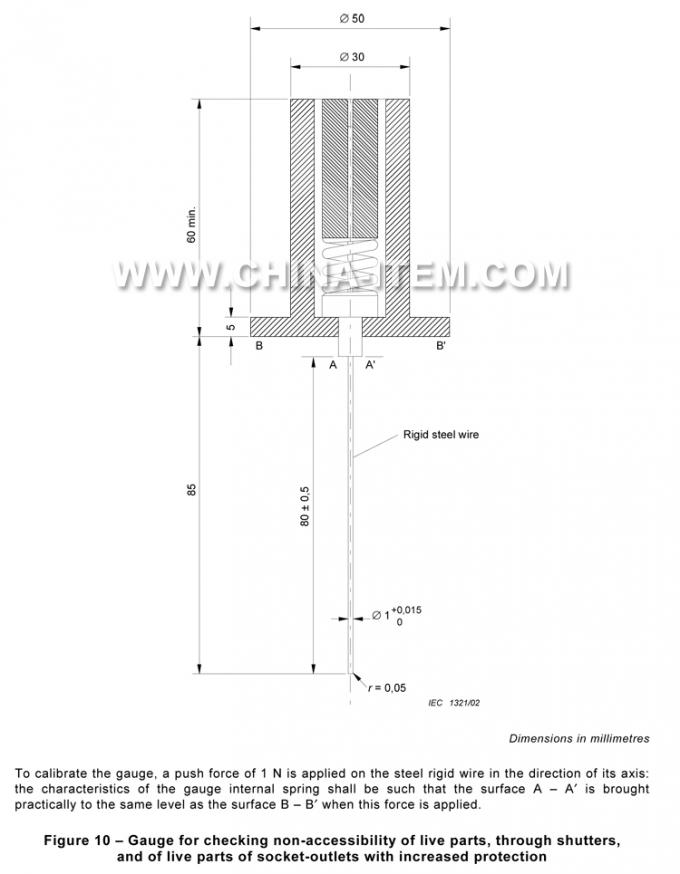

1) 1N Test Gauge for Checking Non-accessibility

IEC 60884-1 Figure 10 - Gauge for checking non-accessibility of live parts, through shutters, and of live parts of socket-outlets with increased protection.

Conforms to IEC 60884-1 Figure 10, DIN VDE 0620-1:2010-02 Lehre 13 etc.

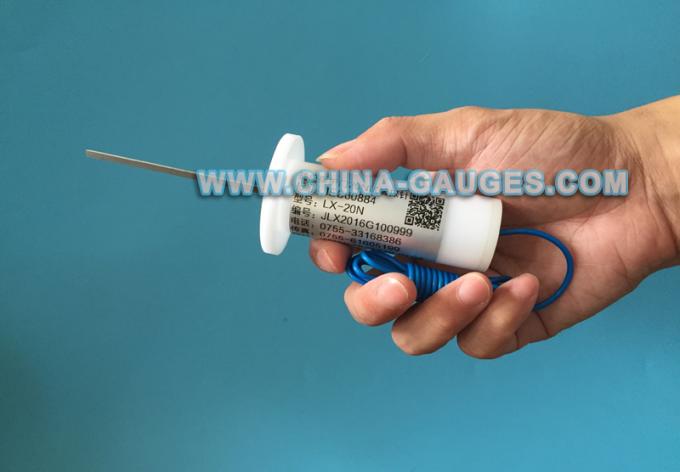

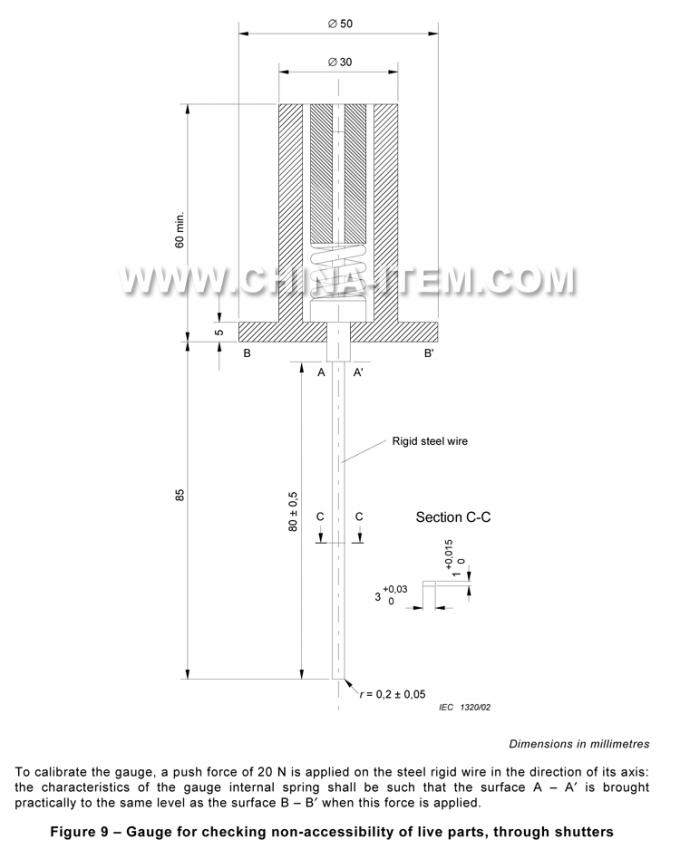

2) 20N Test Gauge for Checking Non-accessibility

IEC 60884-1 Figure 9 - Gauge for checking non-accessibility of live parts, through shutters.

Conforms to IEC 60884-1 Figure 9, DIN VDE 0620-1:2010-02 Lehre 15 etc.

Test Probe with Force for IEC60884 Fig 9 & IEC60884 Fig 10
