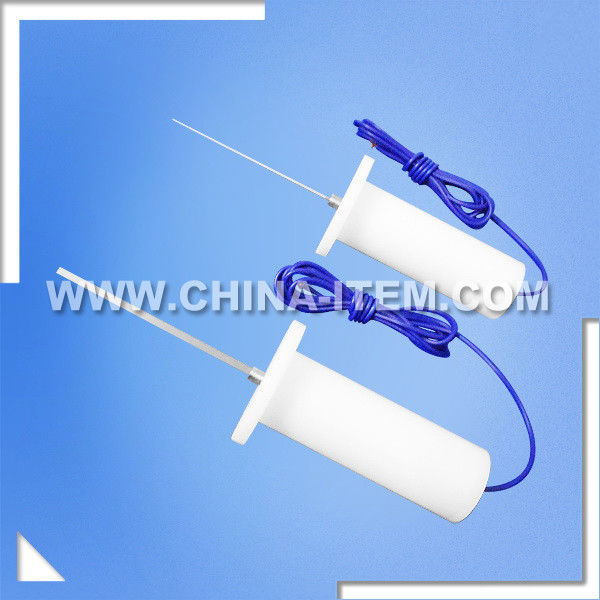

IEC60884 High Precission Socket Protective Test Pin

: Large Image : IEC60884 High Precission Socket Protective Test Pin

Product Details:

Place of Origin:	China
Brand Name:	Julixing
Certification:	ISO 17025 CNAS Test Report
Model Number:	LX-20N/1N

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Contacts us
Packaging Details:	Standard packing
Delivery Time:	7~9 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500 Set per month

Contact Now

Detailed Product Description

Transportation:	DHL Express

IEC 60884 Figure 10 and IEC 60884 Figure 9 Through Shutters Gauge for Checking Non-Accessibility of Live Parts

Basic Introduction:

1. According to : IEC 60884 Fig 10 & Fig 9

2. The test probe is used for household and similar electrical appliances of necessary protection of against electric shock test apparatus; Gauge for checking non-accessibility of live parts, through shutters, and of live parts of socket-outlets with increased protection.

Technical Parameters:

Gauge: 3mm*1mm(wide * thick);

Diameter: φ1.0mm

Test probe length: 80mm

Force: 20N/1N

Material: The handle is made of nylon, tip is made of hardened steel

To calibrate the gauge, a push force of 20 N& 1 N is applied on the steel rigid wire in the direction of its axis:the characteristics of the gauge internal spring shall be such that the surface A – A′ is brought practically to the same level as the surface B – B′ when this force is applied.

Gauge for checking non-accessibility of live parts, through shutters
