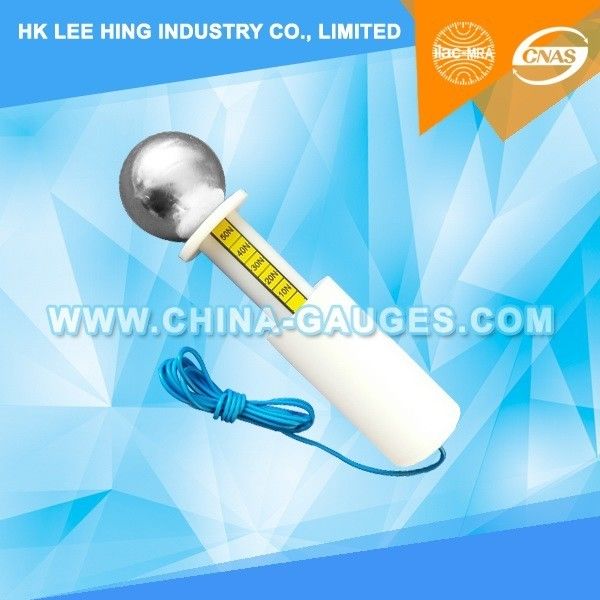

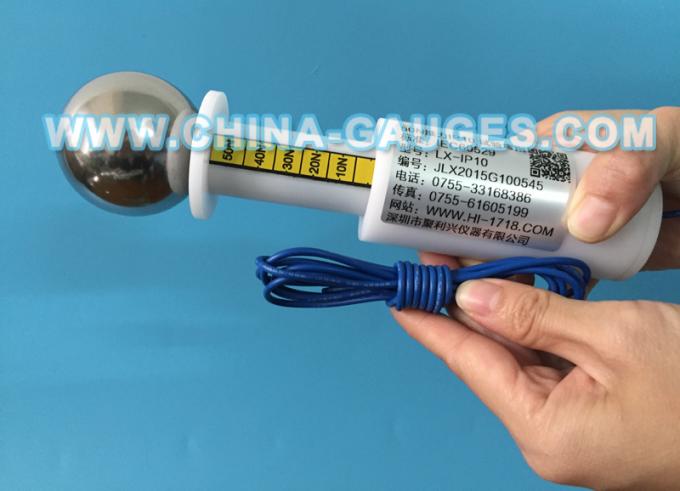

IP1X Test Probe with 50N Thrust

50mm Sphere IP1X Test Probe with Baffle and Handle



Specification:

IP1X Probe A /Test Probe A
1, According to: IEC 61032:1997 / IEC 60529:2001 and UL;
2, Test Probe A is necessary appliance for household and similar electrical appliance of against electric shock protection test.



Technical Parameters:

1. Ball Diameter: 50mm

2. Baffle Plate Diameter: 45mm

3. Baffle Plate Thickness: 4mm

4. Handle Diameter: 10mm

5. Handle Length: 100mm

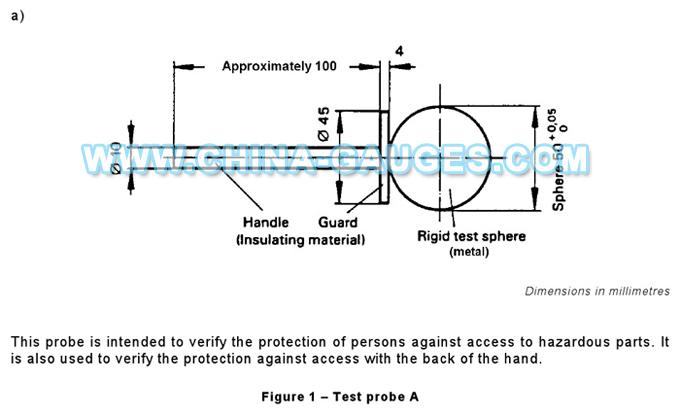

6. According to IEC 61032 figure 1 (the Test probe A), table 6 GB/T4208-2008 the first characteristics (1)

7. Thrust: 10N/20N/30N/40N/50N





Application:

1, Sphere can not touch the live parts or close to the dangerous parts.

2, In the testing requirements of keep close to the dangerous part, the test steel ball without thrust need to be used with push tension meter, and steel body for protective coating need to apply to 50 + 5 n (30 + 3 n) thrust.
