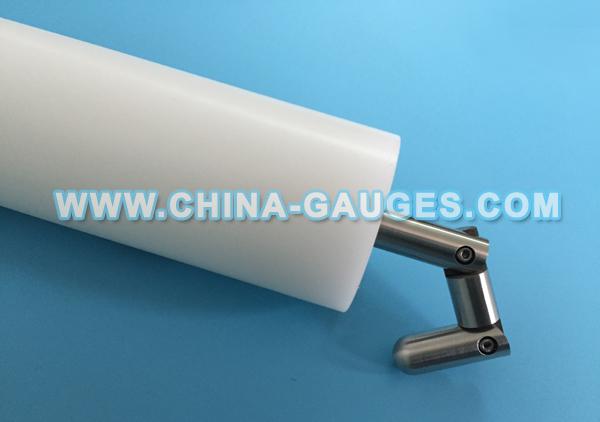

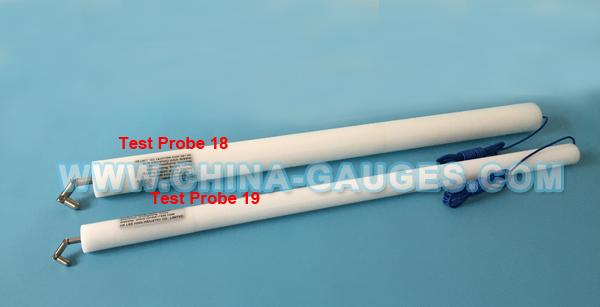

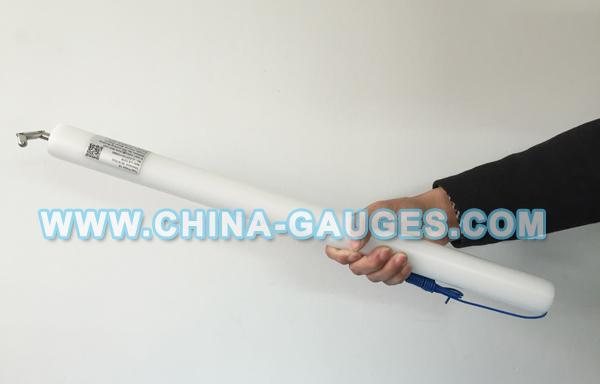

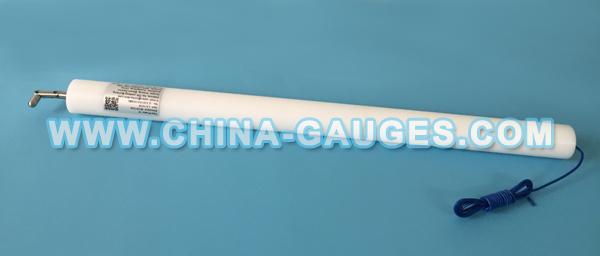

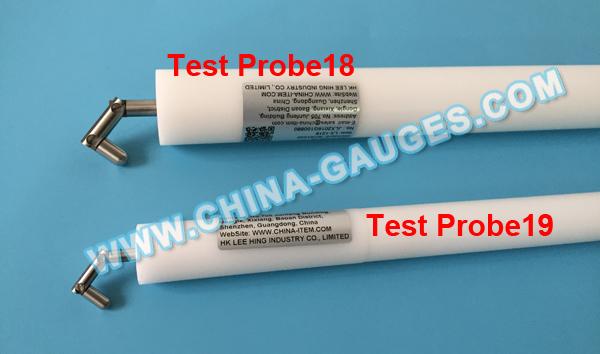

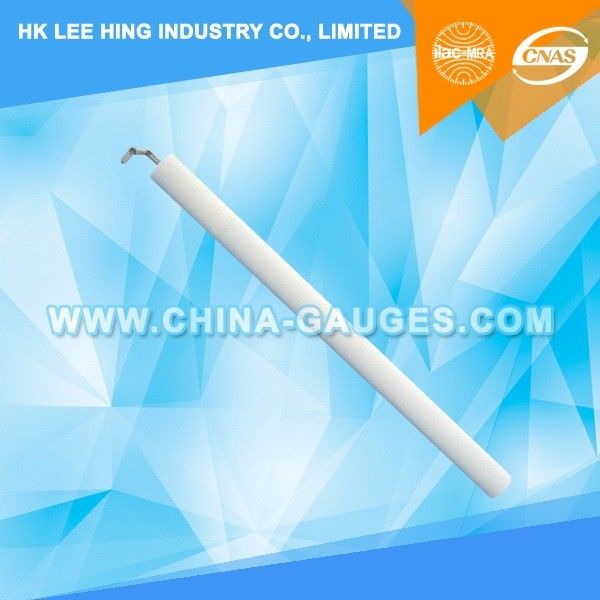

Test Probe 18 of IEC61032, 8.6 mm Small Finger Probes

Small Finger Probe 8,6 Test Probe 18 of IEC 61032

Conforms to: Standard IEC61032-1997.

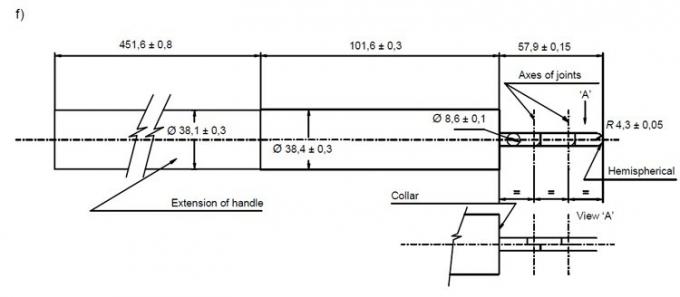

IEC 61032 Figure 12 – Test probe 18 (small finger probe ∅ 8,6)

– Finger: metal material

– Handle: insulating material



Technology Parameter:

Knurled finger diameter:8.6 mm

Head radius:4.3 mm

Knurled finger length:57.9 mm(three knurls,19.3 mm/knurl)



Notes:

The extension of the handle represents the arm of the child.

And the handle is provided with an extension 451,6 mmlong, and the probe should be applied with or without this extension, whichever is the more onerous condition.

Both joints shall permit movement in the same plane and the same direction through an angle of 90°.

This probe is intended to simulate access to hazardous parts by children of more than 36 months and less than 14 years.











HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Plugs and Socket Outlet Gauge, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
