Test Probe A of IEC61032 ,50mm Sphere with Baffle and Handle

China Test Probe A of IEC61032 ,50mm Sphere with Baffle and Handle supplier

Large Image :  Test Probe A of IEC61032 ,50mm Sphere with Baffle and Handle

Product Details:

Place of Origin: Made in China
Brand Name: JLX
Certification: ISO 17025 CNAS & ILAC Test Report
Model Number: LX-1201

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export standard packing
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 per month
Contact Now
Detailed Product Description
Standard: IEC 61032

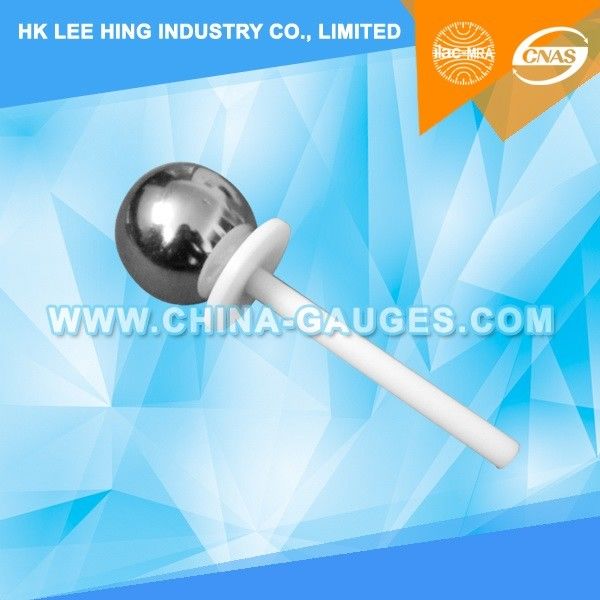

50mm Sphere Test Probe A with Baffle and Handle



Specification:

IP1X Probe A /Test Probe A
1, According to: IEC 61032:1997 / IEC 60529:2001 and UL;
2, Test Probe A is necessary appliance for household and similar electrical appliance of against electric shock protection test.



Technical Parameters:
1. Ball Diameter: 50mm
2. Baffle Plate Diameter: 45mm
3. Baffle Plate Thickness: 4mm
4. Handle Diameter: 10mm
5. Handle Length: 100mm

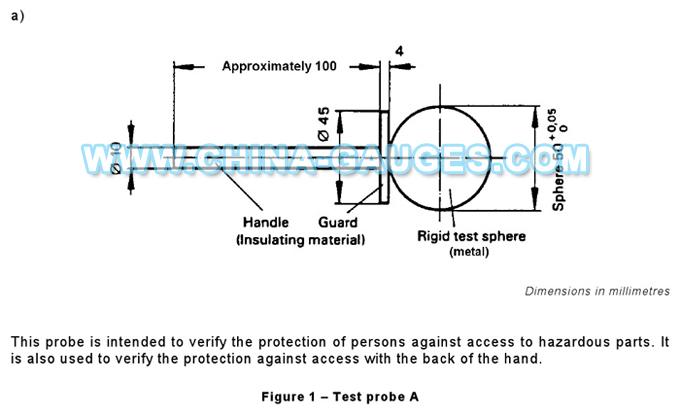

6. According to IEC 61032 figure 1 (the Test probe A), table 6 GB/T4208-2008 the first characteristics (1)



Application:
1, Sphere can not touch the live parts or close to the dangerous parts.
2, In the testing requirements of keep close to the dangerous part, the test steel ball without thrust need to be used with push tension meter, and steel body for protective coating need to apply to 50 + 5 n (30 + 3 n) thrust.



Test Probe A of IEC61032 ,50mm Sphere with Baffle and Handle
