Test Probe a of IEC 61032 Test Machine

: Large Image : Test Probe a of IEC 61032 Test Machine

Product Details:

Place of Origin:	China
Brand Name:	Julixing
Certification:	ISO 17025 CNAS Test Report
Model Number:	LX-1AT

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Contacts us
Packaging Details:	Standard packing
Delivery Time:	7~9 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500 Set per month

Contact Now

Detailed Product Description

Transportation:	DHL Express

IEC61032:1997 / IEC61032:2008 / BS EN61032 / CEI 61032 IP1X Test Probe A with 50N Force

Specification:

IP1X Probe A /Test Probe A
1, According to : GB/T4208-2008 / IEC 61032:1997 / IEC 60529:2001 and UL
2, IP1X Probe A (Test Probe A) is necessary appliance for household and similar electrical appliance of against electric shock protection test.

Technical Parameters:

1. Ball Diameter: 50mm
2. Total Length: 210mm
3. Baffle Plate Diameter: 45mm
4. Baffle Plate Thickness: 4mm
5. Handle Diameter: 45mm
6. Handle Length: 95mm

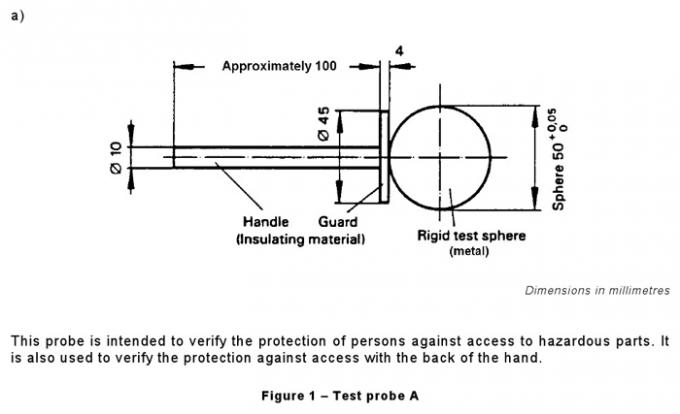

7. According to IEC 61032 figure 1 (the Test probe A), table 6 GB/T4208-2008 the first characteristics (1)

Application:

1, Sphere can not touch the live parts or close to the dangerous parts.

2, In the testing requirements of keep close to the dangerous part, the test steel ball without thrust need to be used with push tension meter, and steel body for protective coating need to apply to 50 N thrust.

test probes a
