IEC60068-2-75 Figure A.4 10J Vertical Hammers for IK09 Test Ehc Striking Element

: Large Image : IEC60068-2-75 Figure A.4 10J Vertical Hammers for IK09 Test Ehc Striking Element

Product Details:

Place of Origin:	Made in China
Brand Name:	JLX
Certification:	ISO 17025 CNAS & ILAC Test Report
Model Number:	LX-EHC10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Export standard packing
Delivery Time:	5 working days
Payment Terms:	T/T, Western Union
Supply Ability:	200 per month

Contact Now

Detailed Product Description

Standard:	IEC 60068

IEC60068-2-75 Figure A.4 10J Vertical Hammers for IK09 Test Ehc Striking Element.

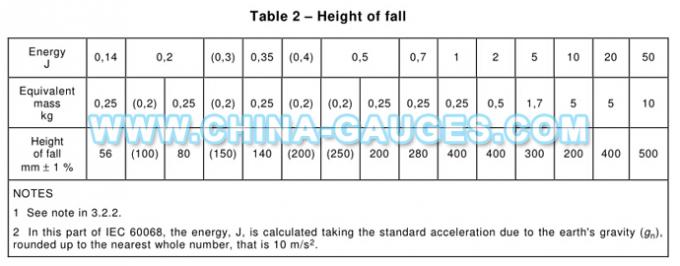

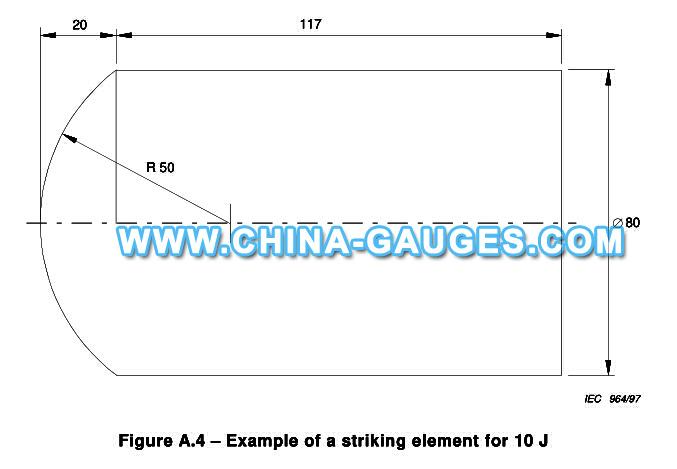

According to IEC60068-2-75 table 1, table 2 and Figure A.4.

Energy	5 J	10 J	20 J	50 J
Equivalent Mass ( kg, ±2%)	1.7	5	5	10
Height of Dropping ±1%/mm	300	200	400	500
Diameter ( mm )	60	80	100	125

IEC60068-2-75 Figure A.4 10J Vertical Hammers for IK09 Test Ehc Striking Element
