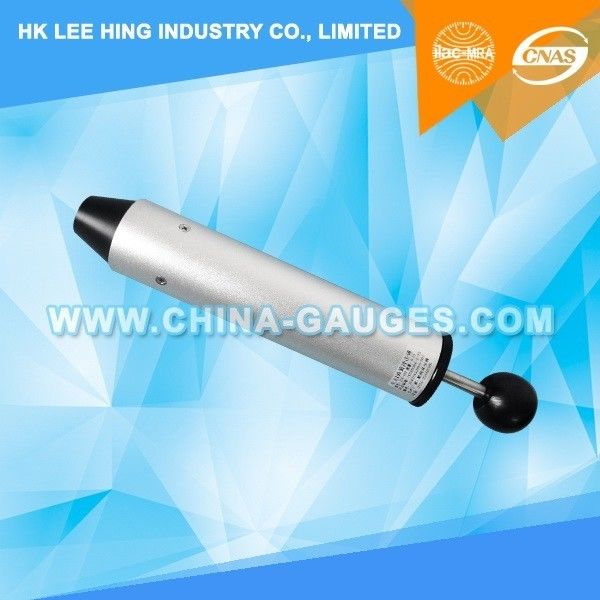

1.0 Joules Impact Energy Hammer of IK06

: Large Image : 1.0 Joules Impact Energy Hammer of IK06

Product Details:

Place of Origin:	Made in China
Brand Name:	JLX
Certification:	ISO 17025 CNAS & ILAC Test Report
Model Number:	LX-IK06

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Export standard packing
Delivery Time:	5 working days
Payment Terms:	T/T, Western Union
Supply Ability:	200 per month

Contact Now

Detailed Product Description

Standard:	IEC60068

Standard: IEC60068-2-75.

Technical parameters:

Length:211mm

Weight:1250g

OD : 50mm

Hammer Weight :60g

Hammer Radius:10mm

The release force of impact: <10N

Impact Components: Including the hit ball handle the hammer ,weight 250g

Hammer head is made from white polyethylene imine first .

Impact Emergy	Error
1.0 J	±0.05J

Application:

Impact hammer are used to check the durability of enclosure for electrical appliance of other electronic product.The Impact Hammer simulates the mechanical impact to test household and similar electrical appliance shell ,lever,handle,knobs,light and other shell to withstand mechanical shocks.

Company introduction

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Plugs and Socket Outlet Gauge, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
