| Standard: | IEC 60950 |
|---|

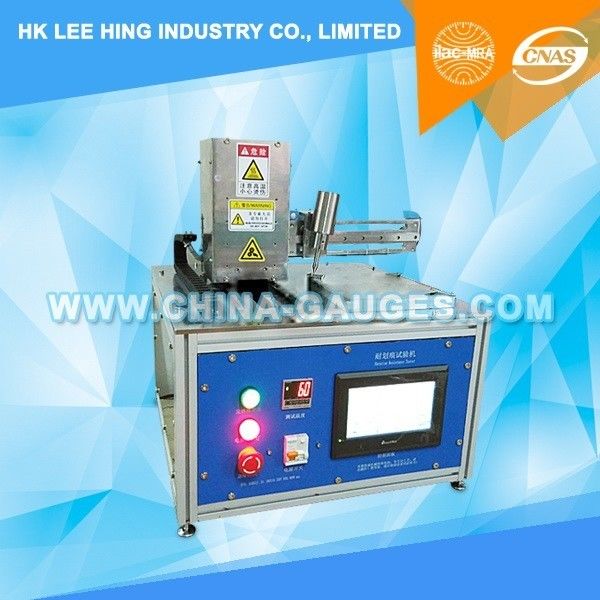

Abrasion Resistance Tester of IEC 60335-1 and IEC 60950
Specification:

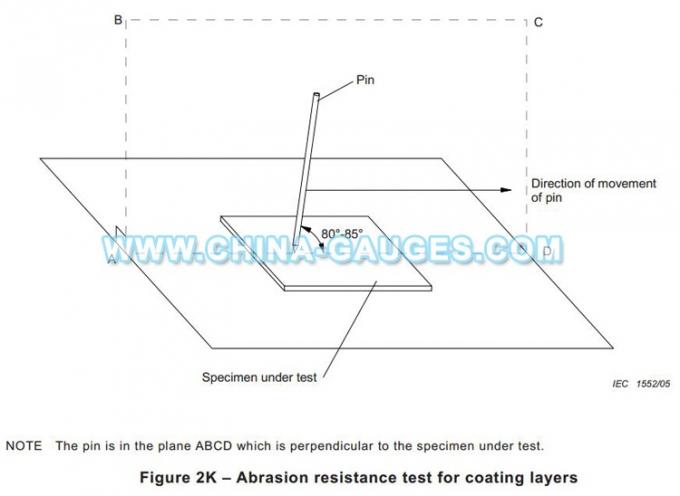

1) According to IEC 60950 figure 2K and clause2.10.8.4, IEC 60335-1 clause 21.2.
2) Abrasion Resistance Tester is used to check abrasion strength of printed circuit boards or the insulating accessible parts of the household appliances.
3) Abrasion resistance tester can touch screen set the X axis arbitrary stroke 0-180mmand the Y shaft arbitrary spacing (0 ~180mm) and Z axis with lifting motor, and the speed of the X axis can be regulated within 0 ~30 mm/s, Y axis speed can be adjusted in the range of 0 ~20mm. At the same time, the testing machine can provide the heating function for the sample, and the temperature display panel is provided, which is convenient to use, simple operation and complete function.
Technical:
| Input Voltage | 220V / 50Hz |
| Control System | PLC + Touch Screen |
| Preheating Tablet Size | 150 mm *150 mm |
| Drive Mode | Three-axis Motion |
| Pattern | Auto & Manual |
| Touch Screen Size | 7 inch |
| Temperature Module | PLC |
