1 ~ 10 mm Creepage / Clearance Gauges (27-Size)

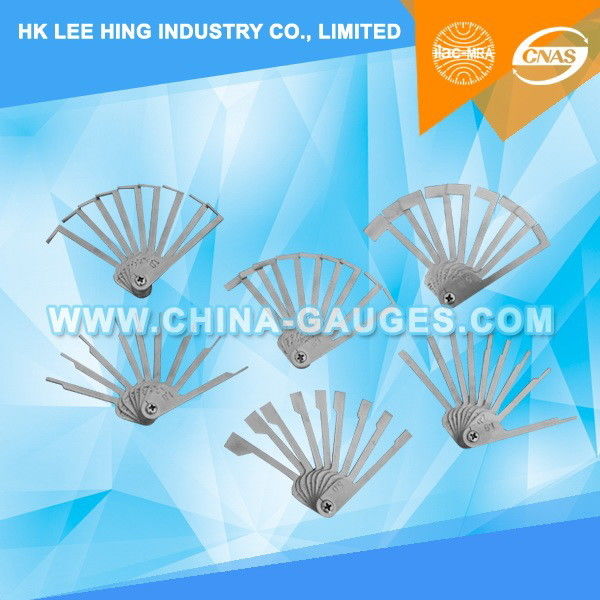

: Large Image : 1 ~ 10 mm Creepage / Clearance Gauges (27-Size)

Product Details:

Place of Origin:	Made in China
Brand Name:	JLX
Certification:	ISO 17025 CNAS & ILAC Test Report
Model Number:	LX-PD27

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Export standard packing
Delivery Time:	5 working days
Payment Terms:	T/T, Western Union
Supply Ability:	200 per month

Contact Now

Detailed Product Description

Standard:	IEC60598

1 ~ 10 mm Creepage / Clearance Gauges (27-Size)

The Gauge Set measures creepage and clearance distances, distances through insulation and other spacings. The set can be used for compliance testing of electronic equipment and other products as required by all international standards.

It is used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.

Creepage distance test card is made of whole stainless steel.

27-Size:
1.0 ~ 1.8 mm: 1.0 / 1.1 / 1.2 / 1.3 / 1.4 / 1.5 / 1.6 / 1.7 / 1.8;
1.9 ~ 4.5 mm: 1.9 / 2.0 / 2.5 / 2.8 / 3.0 / 3.2 / 3.3 / 4.0 / 4.5;
5.0 ~ 10.0 mm: 5.0 / 5.5 / 6.0 / 6.3 / 6.4 / 7.0 / 8.0 / 9.0 / 10.0.

Standards: According to IEC60598, IEC60335, IEC60601, IEC60065.

Type: Straight, Bend (according to test condition).
