| Standard: | IEC60061 |
|---|

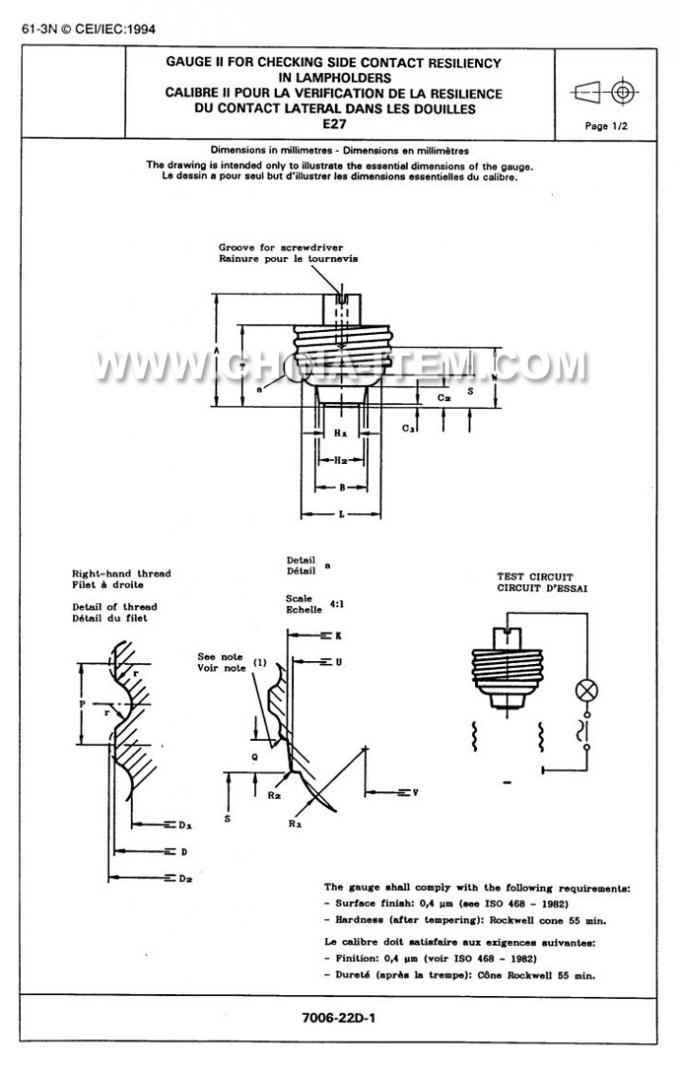

IEC60061-3: 7006-22D-1 E27 Gauge II for Checking Side Contact Resiliency in Lampholders
The drawing is intended only to illustrate the assential dimensions of the gauge.
(1) The sharp part of the edge of the thread shall be broken with a radius of approx. 0,5 mm.
(2) Applies outside dimension W.
(3) Applies within dimension W.
PURPOSE: To check the minimum side contact resiliency of E27 lampholders.
TESTING: the side contact(s) of the lampholder shall be electrically connected with the gauge as shown in the test-circuit.
The gauge is screwed in the lampholder with a torque of 1 Nm.
In this position the indicator lamp shall light.
The test shall be carried out after the test with the gauge for testing contact-making shown on sheet 7006-21.
HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Plugs and Socket Outlet Gauge, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
