| Standard: | IEC60061 |
|---|

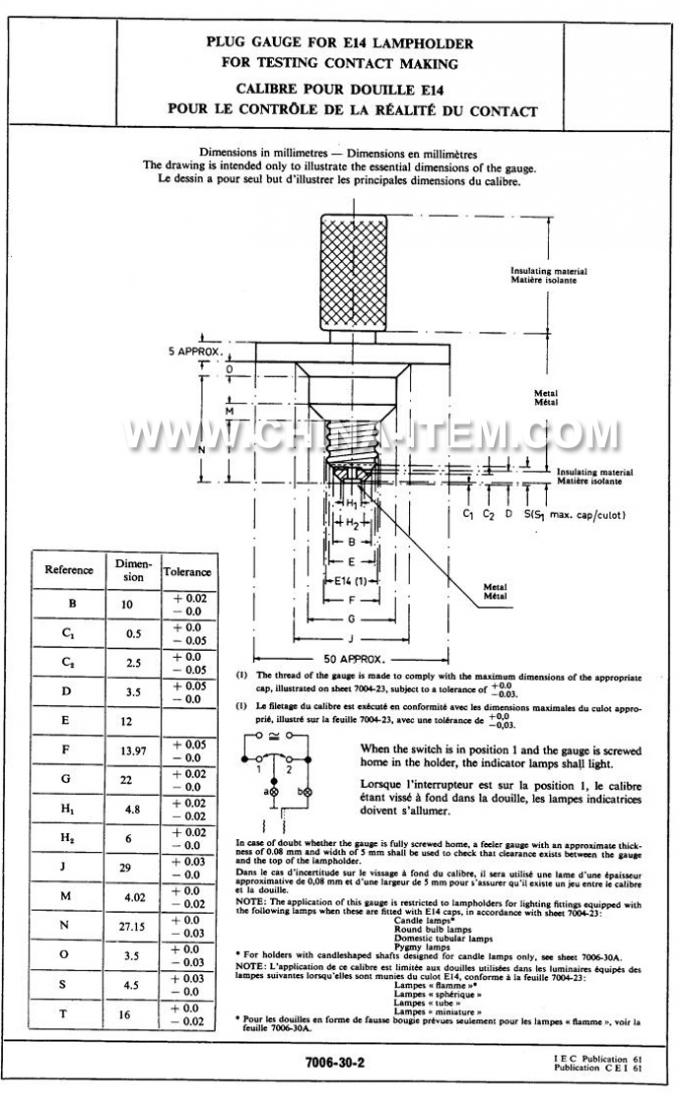

IEC60061-3: 7006-30-2 Plug Gauge for E14 Lampholder for Testing Contact Making
The drawing is intended only to illustrate the essential dimensions of the gauge.
(1) The thread of the gauge is made to comply with the maximum dimensions of the appropriate cap,
illustrated on sheet 7004-23, subject to a tolerance of +0.0 -0.03.
When the switch is in position 1 and the gauge is screwed home in the holder, the indicator lamps
shall light.
In case of doubt whether the gauge is fully screwed home, a feeler gauge with an approximate thick-
ness of 0.08 mm and width of 5mm shall be used to check that clearance exists between the gauge and
the top of the lampholder.
NOTE: The application of this gauge is restricted to lampholders for lighting fittings equipped with
the following lamps when these are fitted with E14 caps, in accordance with sheet 7004-23:
Candle lamps*
Round bulb lamps
Dmestic tubular lamps
Pygmy lamps
*For holders with candleshaped shafts designed for candle lamps only, see sheet 7006-30A.
HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Plugs and Socket Outlet Gauge, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
