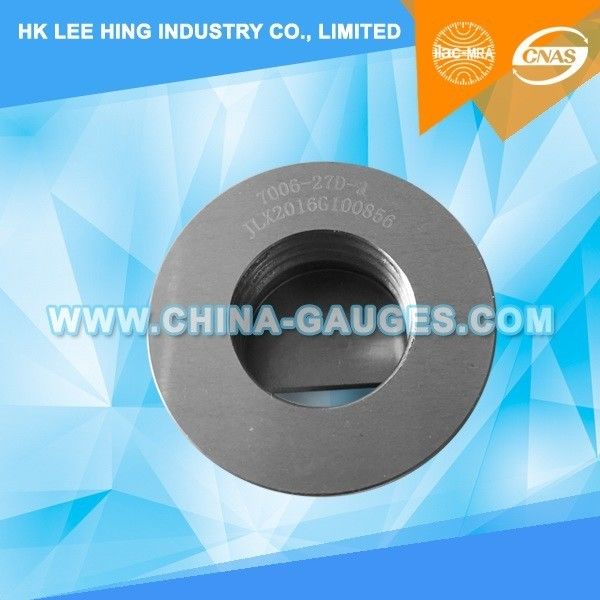

IEC60061-3: 7006-27D-3 E26 GO Gauge for Caps

: Large Image : IEC60061-3: 7006-27D-3 E26 GO Gauge for Caps

Product Details:

Place of Origin:	Made in China
Brand Name:	JLX
Certification:	ISO 17025 CNAS & ILAC Test Report
Model Number:	7006-27D-3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Export standard packing
Delivery Time:	5 working days
Payment Terms:	T/T, Western Union
Supply Ability:	200 per month

Contact Now

Detailed Product Description

Standard:	IEC60061

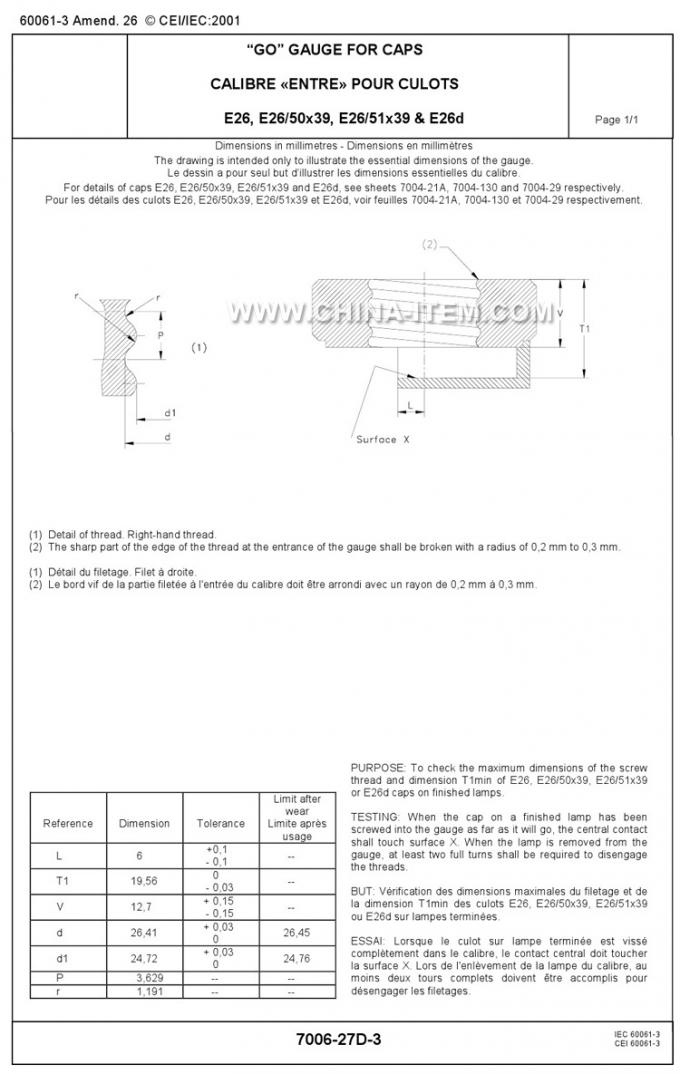

Go gauges for caps E26, E26/50x39, E26/51x39 & E26d, 7006-27D-3

Purpose:

To check the maximum dimensions of the screw thread and dimension T1 minimum of E26, E26/50x39, E26/51x39 or E26d caps on finished lamps.

Testing:

When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall touch surface X. When the lamp is removed from the gauge, at least two full turns shall be required to disengage the threads.

IEC60061-3: 7006-27D-3 E26 GO Gauge for Caps
