IEC60061-3: 7006-28C-1 No Go Gauge for Caps on Finished Lamps E12

: Large Image : IEC60061-3: 7006-28C-1 No Go Gauge for Caps on Finished Lamps E12

Product Details:

Place of Origin:	Made in China
Brand Name:	JLX
Certification:	ISO 17025 CNAS & ILAC Test Report
Model Number:	7006-28C-1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Export standard packing
Delivery Time:	5 working days
Payment Terms:	T/T, Western Union
Supply Ability:	200 per month

Contact Now

Detailed Product Description

Standard:	IEC60061

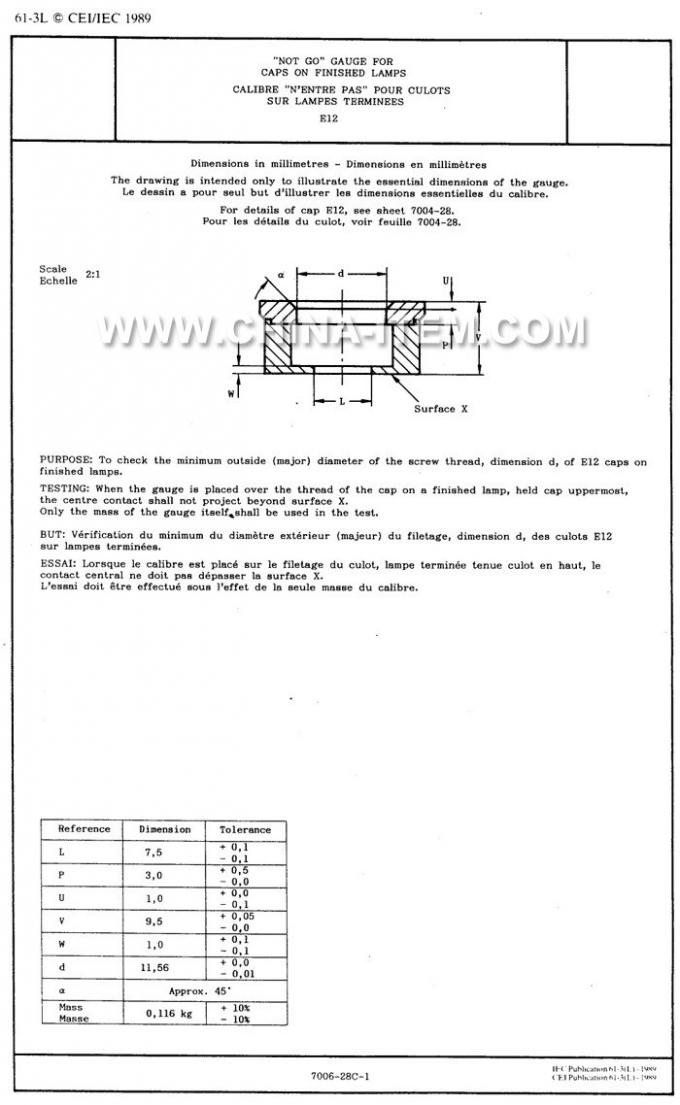

Not go gauge for caps on finished lamps E12, 7006-28C-1

Purpose:

To check the minimum outside (major) diameter of the screw thread, dimension d, of E12 caps on finished lamps.

Testing:

When the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the centre contact shall not project beyond surface X.

Only the weight of the gauge itself shall be used in the test.

IEC60061-3: 7006-28C-1 No Go Gauge for Caps on Finished Lamps E12
