IEC60061-3: 7006-27B-1 Go Gauge for E27 Caps on Finished Lamps

: Large Image : IEC60061-3: 7006-27B-1 Go Gauge for E27 Caps on Finished Lamps

Product Details:

Place of Origin:	Made in China
Brand Name:	JLX
Certification:	ISO 17025 CNAS & ILAC Test Report
Model Number:	7006-27B-1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Export standard packing
Delivery Time:	5 working days
Payment Terms:	T/T, Western Union
Supply Ability:	200 per month

Contact Now

Detailed Product Description

Standard:	IEC60061

IEC60061-3: 7006-27B-1 Go Gauge for E27 Caps on Finished Lamps

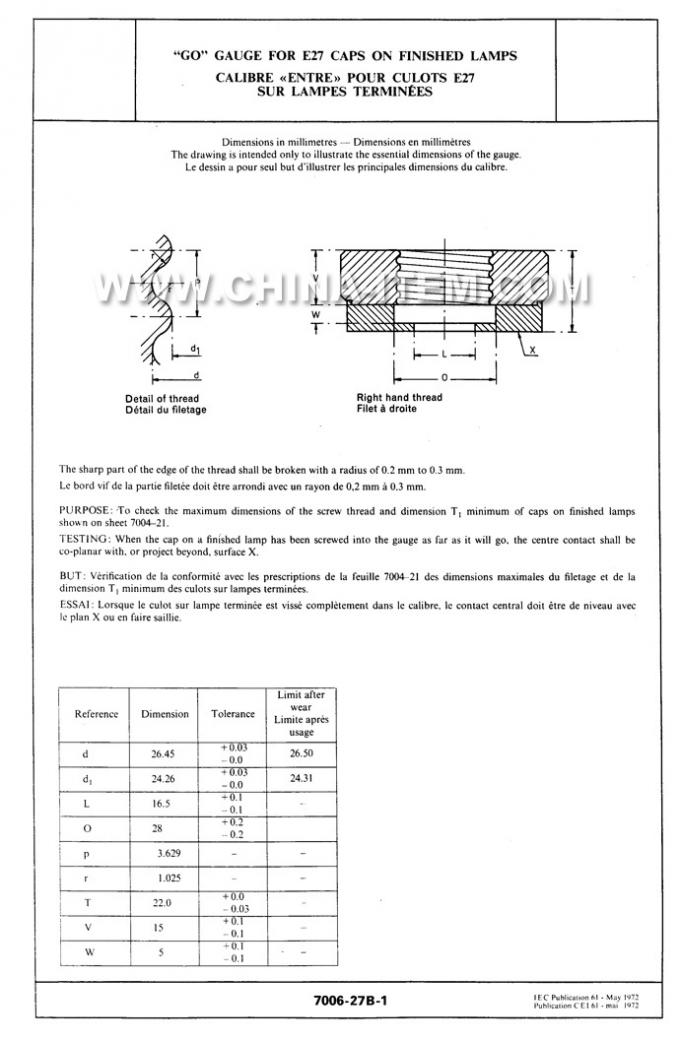

The drawing is intended only to illustrate the essential dimensions of the gauge.

The sharp part of the edge of the thread shall be broken with a radius of 0.2 mm to 0.3 mm.

PURPOSE:
To check the maximum dimensions of the screw thread and dimension T1 minimum of caps on finished lamps shown on sheet 7004-21.

TESTING:
When the cap on a finished lamp has been screwed into the gauges as far as it will go, the centre contact shall be coplanar with, or project beyond surface X.

IEC60061-3: 7006-27B-1 Go Gauge for E27 Caps on Finished Lamps
