E14/20 Lamp Caps,EN 60360 Figure 3

: Large Image : E14/20 Lamp Caps,EN 60360 Figure 3

Product Details:

Place of Origin:	Made in China
Brand Name:	JLX
Certification:	ISO 17025 CNAS & ILAC Test Report
Model Number:	LX-E14Q

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Export standard packing
Delivery Time:	5 working days
Payment Terms:	T/T, Western Union
Supply Ability:	200 per month

Contact Now

Detailed Product Description

Standard:	EN 60360

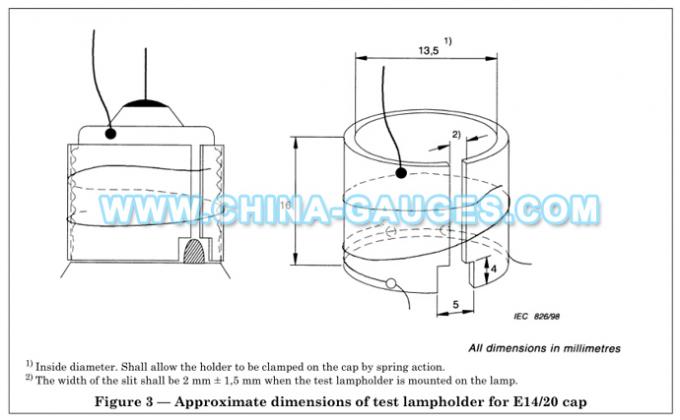

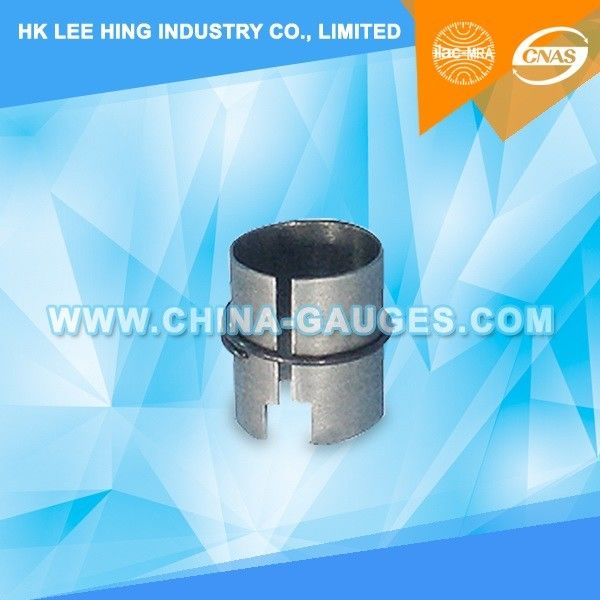

IEC 60360 Figure 3 - E14/20 Lamp Caps

According to standard EN 60360 / IEC 60360 figures 3, used to auxiliary test of temperature rise in the draught-proof enclosure.

Material: Nickel 99 % min.

Thickness: 0,5 mm± 0,02 mm

Vickers hardness: 135 ± 15.

Quality and finish: The material shall be uniform in composition and properties. The strip shall be rolled smooth, with a clean bright surface. It shall be cut straight and be free from kinks, waviness, dents, inclusions, lubricants and other defects.

Grain size: ASTM 8 min. (approximately0,019 mmmax.).

E14/20 Lamp Caps,EN 60360 Figure 3
