Product Details:
Payment & Shipping Terms:
|
| Standard: | IEC61529 |
|---|
Basic Introduction:
1, According to the DIN40050 IEC60529.
2, 12.5MM test probe is necessary appliance for household and similar electrical appliance of against electric shock protection test.

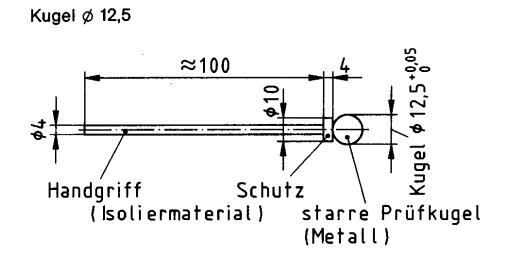

Technical parameters:
1, Ball Diameter: 12.5 mm
2, Baffle Plate Diameter: 4 mm
3, Baffle Plate Thickness: 10 mm
4, Handle Diameter: 4mm
5, Thrust level: 10N/20N/30N/40N/50N
Application:
1, The ball cannot touch the live parts or approach to hazardous parts.
2, In the test requirements of preventing from accessing to the hazardous parts,the test steel ball without thrust needs to be used with pushing tension meter,and steel body needs to exert a 30±3N force on the protection layer.
HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Plugs and Socket Outlet Gauge, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
