IEC 60601 Test Probe Kit

: Large Image : IEC 60601 Test Probe Kit

Product Details:

Place of Origin:	China
Brand Name:	Julixing
Certification:	ISO 17025 CNAS Test Report
Model Number:	LX-60601K

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Contacts us
Packaging Details:	Standard packing
Delivery Time:	7 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500 Set per month

Contact Now

Detailed Product Description

Transportation:	DHL Express

CEI/EN/IEC 60601 Test Probe Kit of Standard Test Finger & Test Hook & Test Pin

Meets IEC 60601. Accessibility probes are used to test the size of openings to ensure that fingers and objects do not have access to hazardous parts in equipment and machinery.

Safety Test Probe Kit contains the probes necessary for testing to IEC 60601:

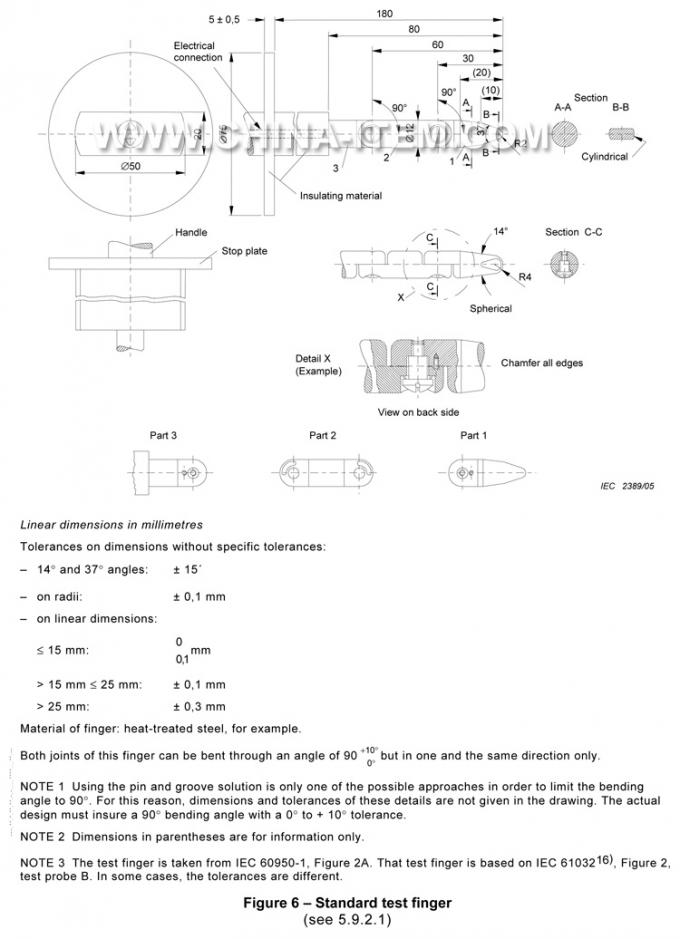

Jointed Finger Probe: Precision probe which follows IEC specifications and meets the newest requirements. The design features a plan simulator to prevent misuse and a restricted joint movement which simulates human finger movement. This model meets CSA, IEC, UL and other industry requirements.

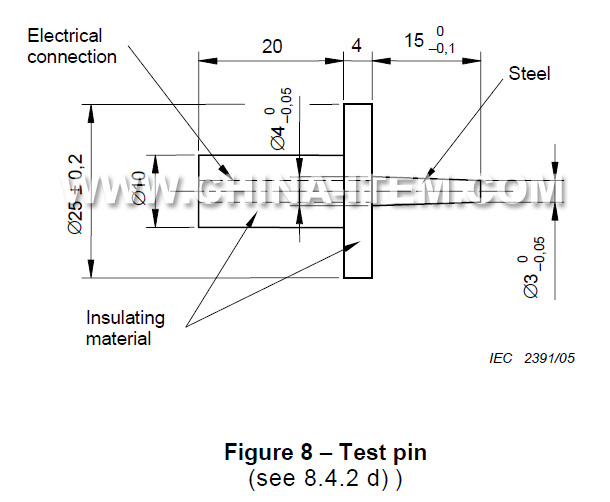

Test Pin Probe: A quality probe used to test for accessibility of small objects manufactured of rugged Delrin with a stainless steel tip, it is machined with precision to meet industry standards. Meets CSA, IEC, UL and other industry requirements.

Unjointed Finger Probe: Identical to the Jointed Finger Probe except that is is rigid. Used for forceful insertion where the flexibility of the would be a hindrance. The handle is designed with a screw tap for use with a force gauge. Meets CSA, IEC, UL and other industry.

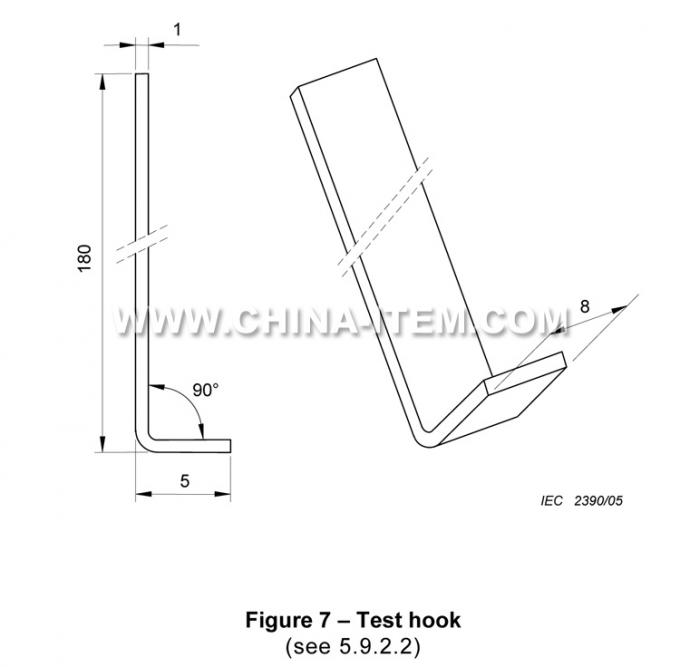

Test Hook Probe: It is used prior to accessibility testing. This probe is put into vents and seams in the enclosure and pulled out with a 20N Force. The Test Hook probe meets international standards such as IEC and EN. This probe meets the requirement for IEC 60601.

Impact Ball 50mm: It is designed to test impact according to IEC, UL, and CSA standards. The Impact Ball – complies with IEC 60950. It is made of stainless steel.
