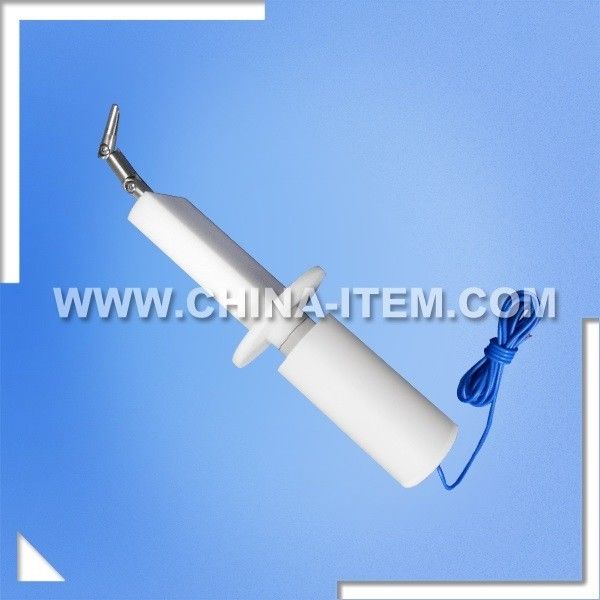

IEC 60529 Probe Test B with 10N Force

: Large Image : IEC 60529 Probe Test B with 10N Force

Product Details:

Place of Origin:	China
Brand Name:	Julixing
Certification:	ISO 17025 CNAS Test Report
Model Number:	LX-2BT10

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Contacts us
Packaging Details:	Standard packing
Delivery Time:	7~9 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500 Set per month

Contact Now

Detailed Product Description

Transportation:	DHL Express

Jointed IEC Test Finger with 10 Thrust

Force Level: 10N

1. Conforms to: Standard IEC 61032-1997, IEC 60529-2001, GB/T4208-2008 and UL etc.

2. The Standard Test Knurled Finger Probe is the necessary appliance to prevent electric shock for household and similar electrical problem.

Technical Parameters:

Length: 30.5 cm

Knurled Finger Diameter: 12 mm

Knurled Finger Length: 8 cm

Handle diameter: 4.5 cm

Handle length: 9.5 cm

Application:

1. The joint part of The Standard Test Knurled Finger Probe can't touch the live parts or close to the dangerous parts, and 50 mm to 20 mm baffle plate cannot enter.

2. In the prevent electric shock test, wirings , power devices, and lighting devices are needed.

Notes:

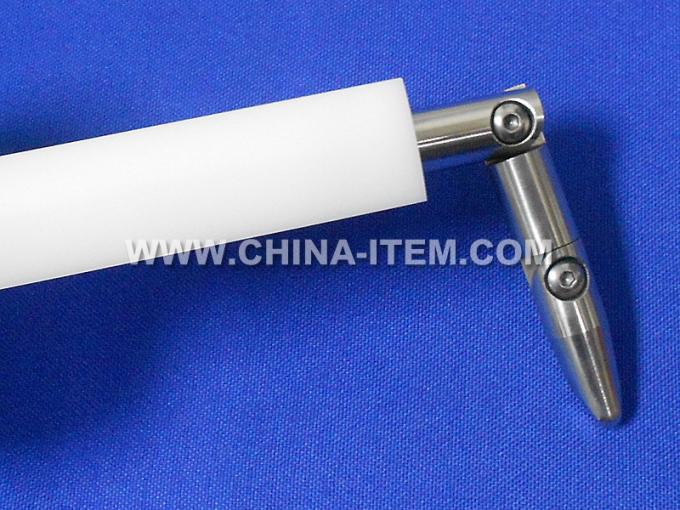

Both joints shall permit movement in the same plane and the same direction through an angle of 90o with a 0o to +10o tolerance.

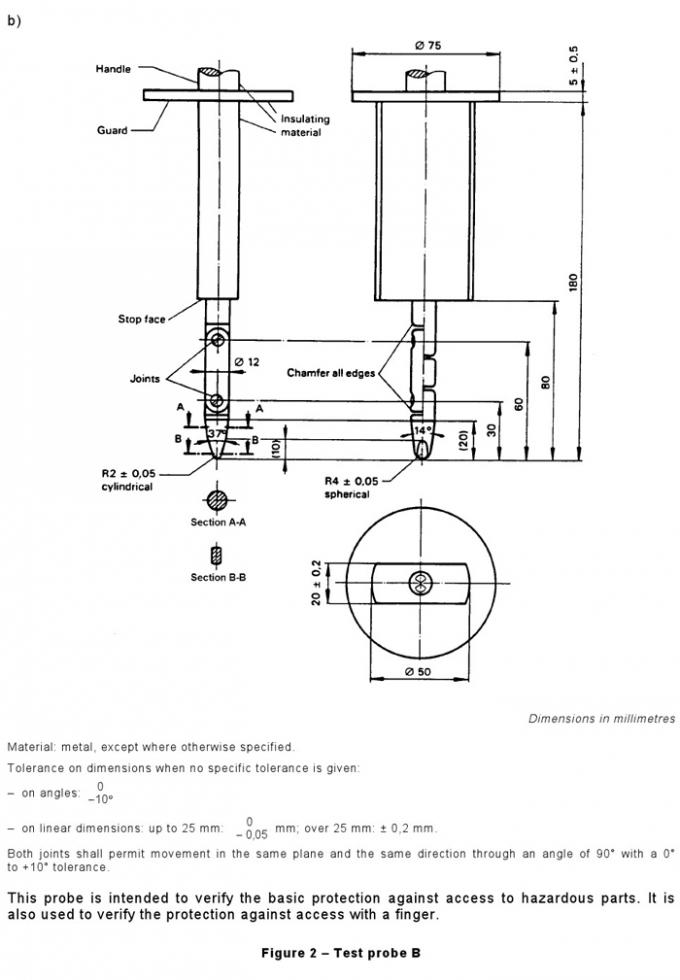

test probe b

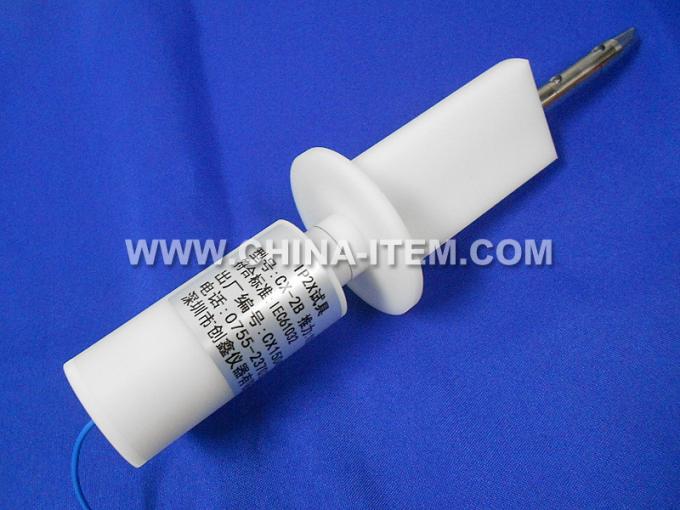

10N IP2X.JPG

IP2X 10N.JPG
