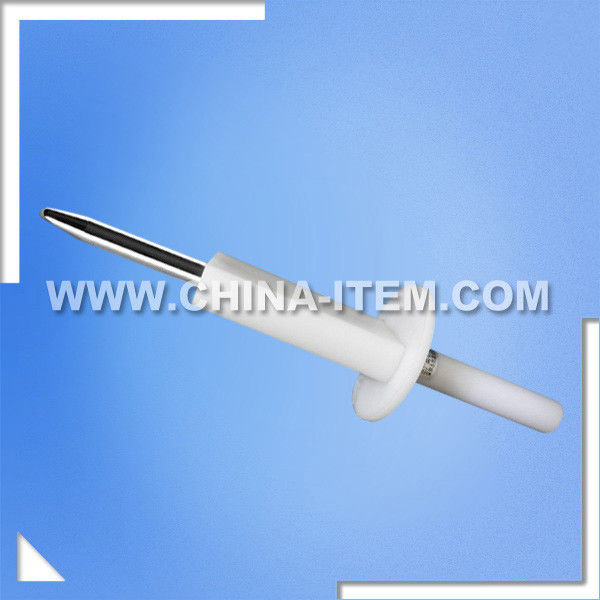

IEC61010 Safety Test Finger Probe / Unjointed Finger Probe

: Large Image : IEC61010 Safety Test Finger Probe / Unjointed Finger Probe

Product Details:

Place of Origin:	China
Brand Name:	Julixing
Certification:	ISO 17025 CNAS Test Report
Model Number:	LX-711

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Contacts us
Packaging Details:	Standard packing
Delivery Time:	7~9 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500 Set per month

Contact Now

Detailed Product Description

Transportation:	DHL Express

AS/NZS/EN/IEC 61010, IEC/EN/UL/AS/NZS 60950, IRAM 2092 Test Probes Finger

Purpose:

This probe may be used to verify the protection of persons against access to hazardous parts and to verify the mechanical strength of openings in the enclosure or internal barriers.

Conforms to:

Standard IEC61032-1997, IEC60529-2001, GB/T4208-2008, AS/NZS/EN/IEC 61010, IEC/EN/UL/AS/NZS 60950, IRAM 2092, SASO/IEC 60335-1, SASO IEC 60950, IEC 60950/EN60950, EN 60950 and UL etc.

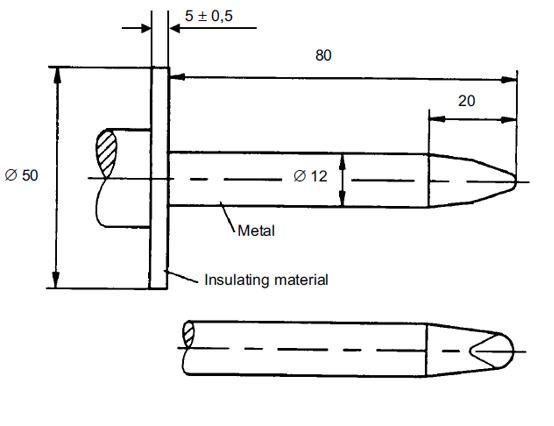

Technical Parameter:

1. Knurled Finger Diameter: 12mm

2. Knurled Finger Length: 80mm

3. Baffle Plate Diameter: 50mm

4. Baffle Plate Length: 100mm

5. Baffle thickness: 20mm

Unjointed Finger Probe: Identical to the Jointed Finger Probe except that is is rigid. Used for forceful insertion where the flexibility of the would be a hindrance. The handle is designed with a screw tap for use with a force gauge. Meets CSA, IEC, UL and other industry.

test probe 11

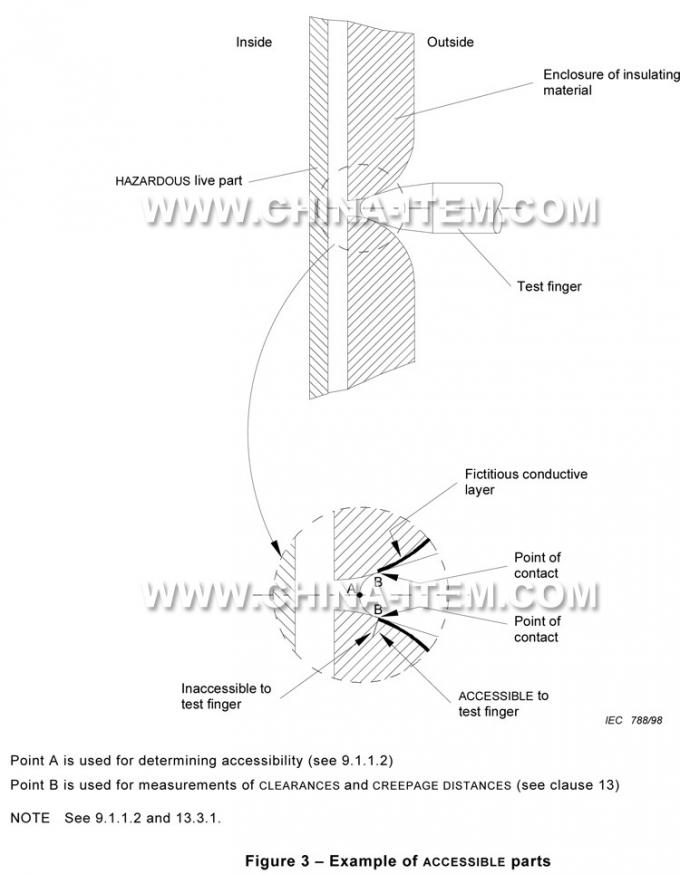

IEC 60065 Figure3.jpg
