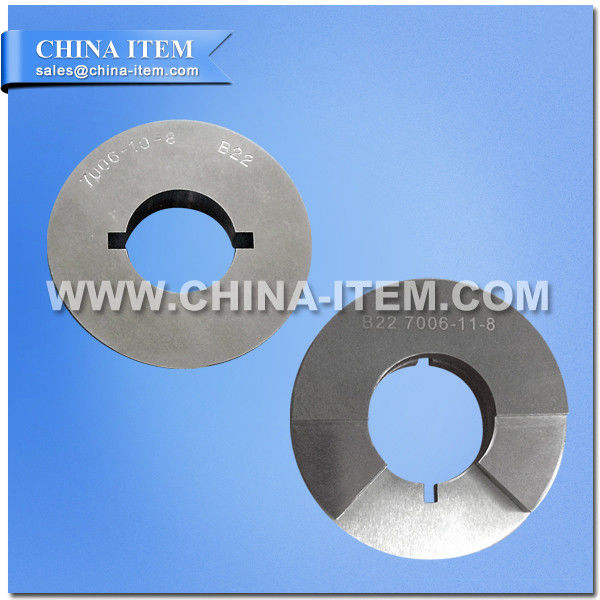

B22 Go No Go Gauge for IEC60061-3

: Large Image : B22 Go No Go Gauge for IEC60061-3

Product Details:

Place of Origin:	China
Brand Name:	Julixing

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Contacts us
Packaging Details:	Standard packing
Payment Terms:	T/T,Western Union,MoneyGram,AliExpress
Supply Ability:	500 Set per month

Contact Now

Detailed Product Description

Incoterms:	CFR	Transportation:	DHL Express
Product Style:	Lab Equipment

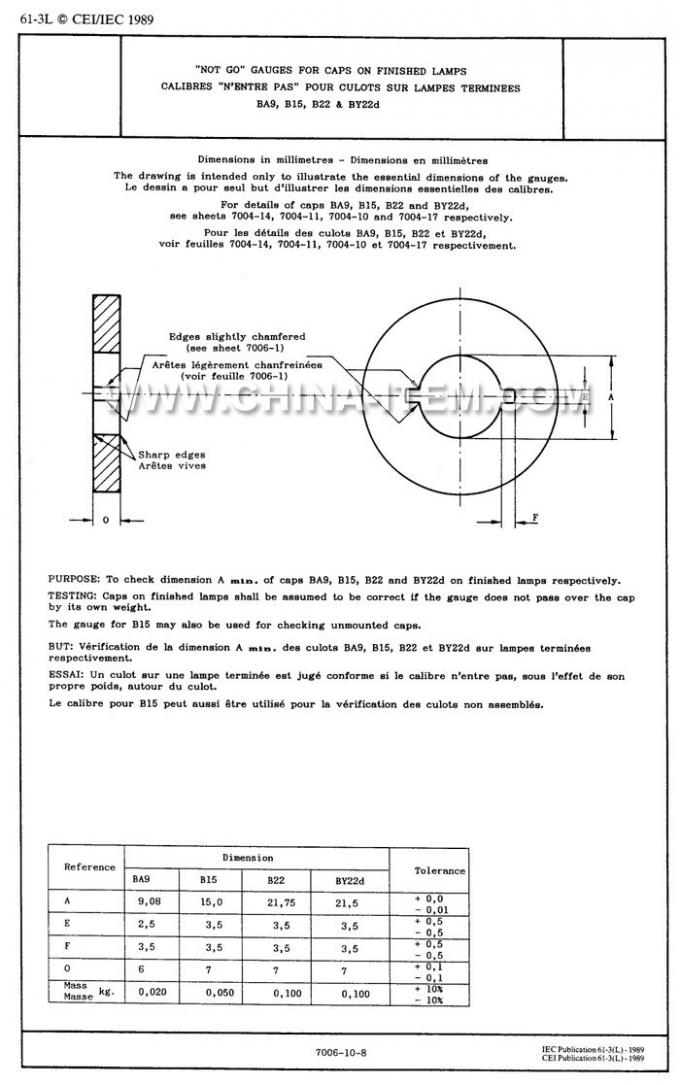

Not go gauges for caps on finished lamps B22, 7006-10-8

According to standard IEC 60061-3

Purpose:

To check dimension A in, of caps B22 on finished lamps.

Testing:

Caps on finished lamps shall be assumed to be correct if the gauge does not pass over the cap by its own weight.

___________________________________________________________________

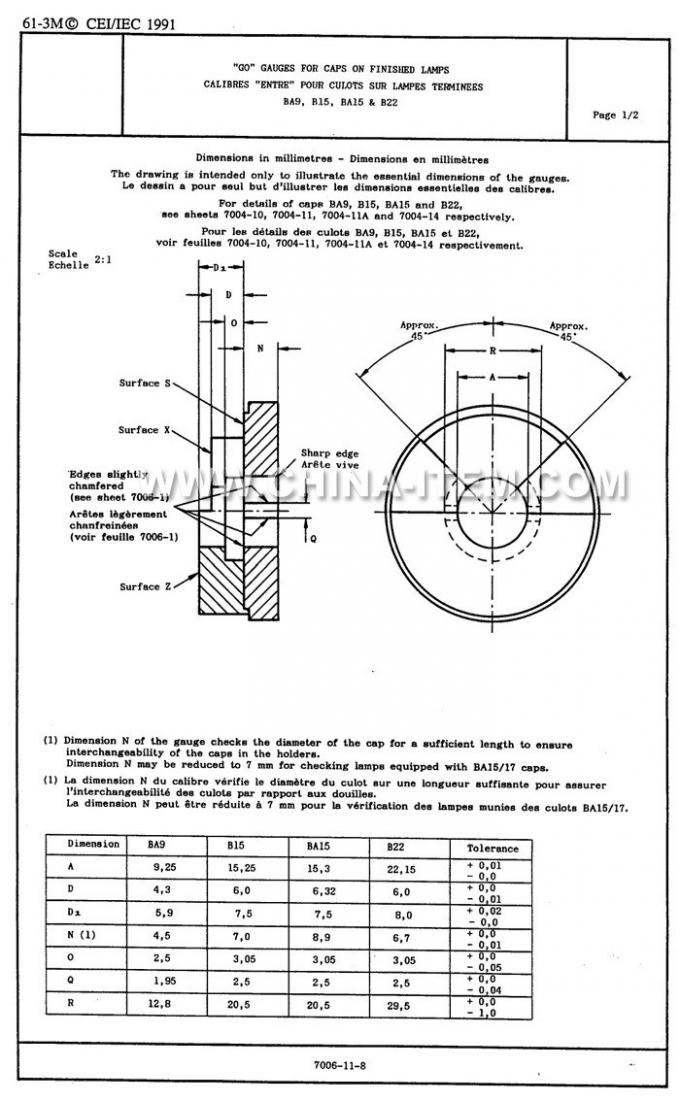

Go gauges for caps on finished lamps BA9, B15, BA15 & B22, 7006-11-8.

According to standard IEC 60061-3

Purpose:

To check dimensions A max., N min. D1 min., D1 max., and the diametrical position of the pins of caps B22 on finished lamps.

Testing:

The cap shall enter the gauge until the pins have passed through the slot Q. The cap is then turned through a small angle and is pressed so that the pins are in close contact with surface S.

In this position, the contact making surface shall not be below surface X nor shall it project beyond surface Z.
