IEC60061-1 G13 7006-44-4 Go and Not-go Gauge for Unmounted Bi-pin Cap Gauge Testing

: Large Image : IEC60061-1 G13 7006-44-4 Go and Not-go Gauge for Unmounted Bi-pin Cap Gauge Testing

Product Details:

Place of Origin:	China
Brand Name:	Julixing

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Contacts us
Packaging Details:	Standard packing
Payment Terms:	T/T,Western Union,MoneyGram,AliExpress
Supply Ability:	500 Set per month

Contact Now

Detailed Product Description

Incoterms:	CFR	Transportation:	DHL Express
Product Style:	Lab Equipment

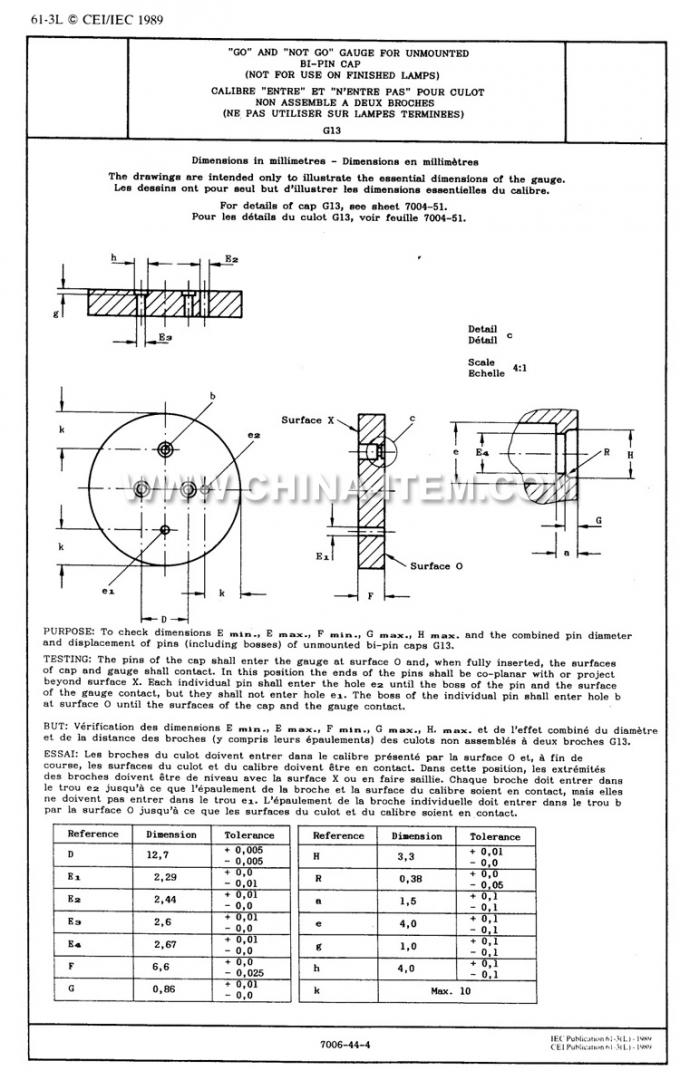

Go and not go gauge for unmounted bi-pin cap(not for use on finished lamps) G13, 7006-44-4

Purpose:

To check dimensions E min., E max., F min., G max., H max. and the combined pin diameter and displacement of pins (including bosses) of unmounted bi-pin caps G13.

Testing:

The pins of the cap shall enter the gauge at surface O and, when fully inserted, the surface of cap and gauge shall contact. In this position the ends of the pins shall be co-planar with or project beyond surface X. Each individual pin shall enter the hole e2 until the boss of the pin and the surface of the gauge contact, but they shall not enter hole e1. The boss of the individual pin shall enter hole b at surface O until the surfaces of the cap and the gauge contact.
