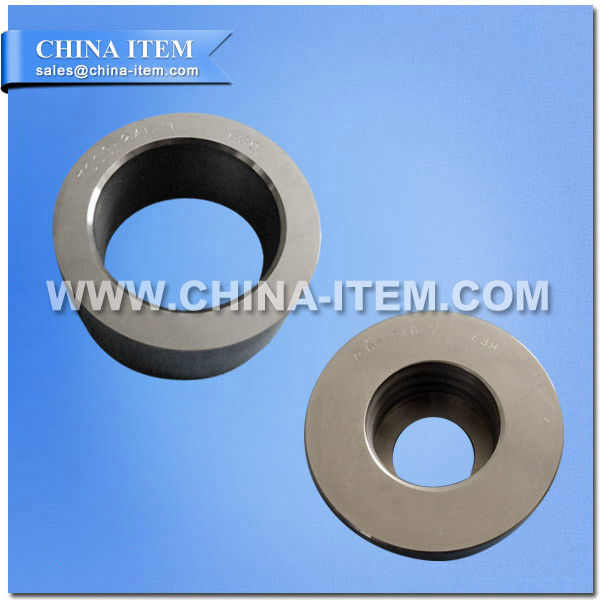

IEC60061 E39 Go No Go Gauge of 7006-24C-1 & 7006-24B-1

: Large Image : IEC60061 E39 Go No Go Gauge of 7006-24C-1 & 7006-24B-1

Product Details:

Place of Origin:	China
Brand Name:	Julixing

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Contacts us
Packaging Details:	Standard packing
Payment Terms:	T/T,Western Union,MoneyGram,AliExpress
Supply Ability:	500 Set per month

Contact Now

Detailed Product Description

Incoterms:	CFR	Transportation:	DHL Express
Product Style:	Lab Equipment

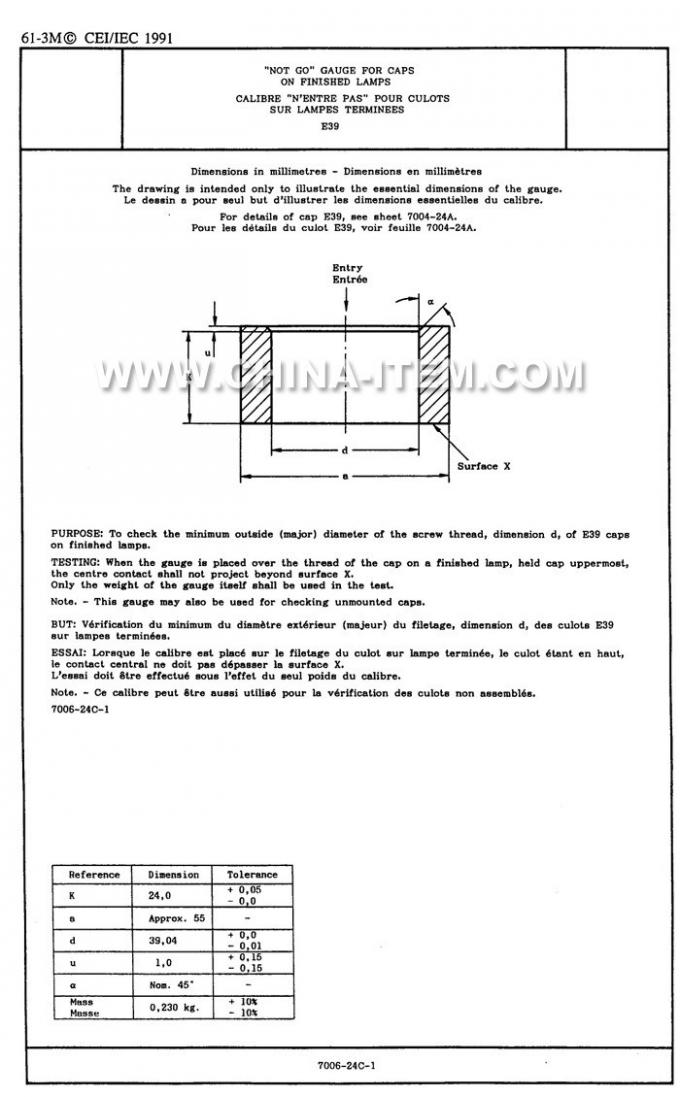

The drawing is intended only to illustrate the essential dimensions of the gauge.

For details of cap E39, see sheet 7004-24A.

PURPOSE: To check the minimum outside (major) diameter of the screw thread, dimension d, of E39 caps on finished lamps.

TESTING: When the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the centre contact shall not project beyond surface X.

Note. - This gauge may also be used for checking unmounted caps.

___________________________________________________________________

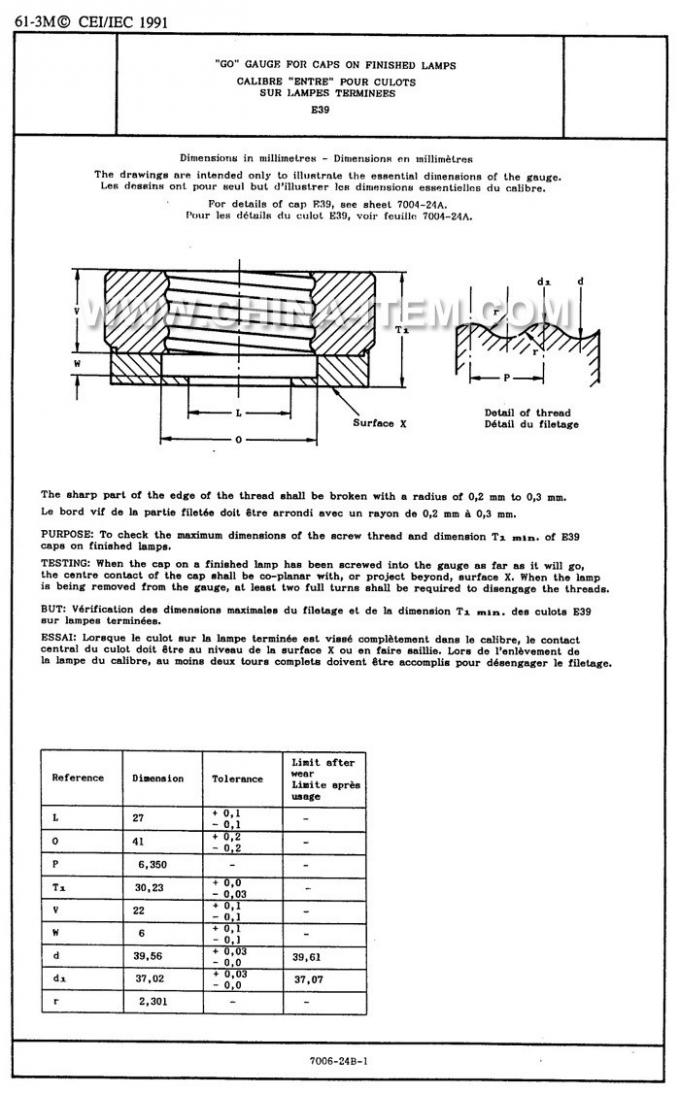

The sharp part of the edge of the thread shall be broken with a radius of 0.2 mm to 0.3 mm.

PURPOSE: To check the maximun dimensions of the crew thread and dimension T1 min, of E39 caps on finished lamps.

TESTING: When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact of the cap shall be co-planar with, or project beyond, surface X, When the lamp is being removed from the gauge, at least two fall turns shall be required to disengage the threads.

IEC60061 E39 Go No Go Gauge of 7006-24C-1 & 7006-24B-1
