IEC Standard Test Probe B IP2X Test Finger for Equipment Jointed Test

: Large Image : IEC Standard Test Probe B IP2X Test Finger for Equipment Jointed Test

Product Details:

Place of Origin:	China
Brand Name:	Julixing

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Contacts us
Packaging Details:	Standard packing
Payment Terms:	T/T,Western Union,MoneyGram,AliExpress
Supply Ability:	500 Set per month

Contact Now

Detailed Product Description

Incoterms:	CFR	Transportation:	DHL Express
Product Style:	Lab Equipment

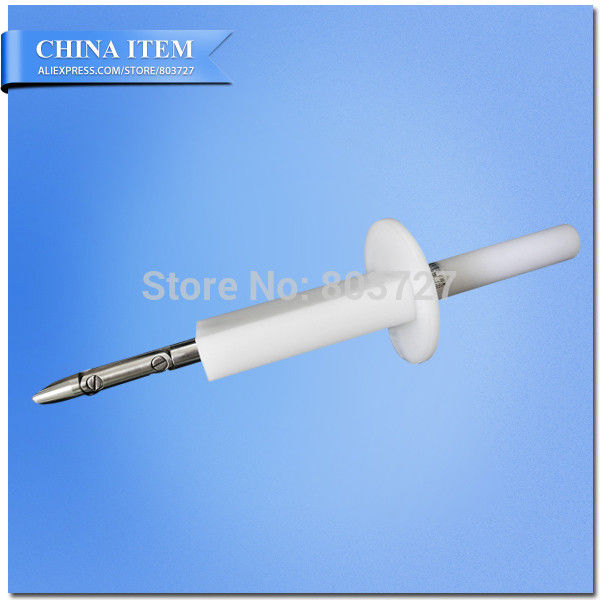

IEC Standard Test Probe B IP2X Test Finger for Equipment Jointed Test

IEC 61032 the Standard Jointed Test Finger Probe B

IP2X Protection Probe

1. Conforms to: Standard IEC 61032-1997, IEC 60529-2001, GB/T4208-2008 and UL etc.

2. The Standard Test Knurled Finger Probe is the necessary appliance to prevent electric shock for household and similar electrical problem.

Technical Parameters:

1. Knurled Finger Diameter: 12mm

2. Knurled Finger Length: 80mm

3. Baffle Plate Diameter: 50mm

4. Baffle Plate Length: 100mm

5. Baffle thickness: 20mm

Application:

1. The joint part of The Standard Test Knurled Finger Probe can't touch the live parts or close to the dangerous parts, and 50 mm to 20 mm baffle plate cannot enter.

2. In the prevent electric shock test, wirings , power devices, and lighting devices are needed.

Notes:

Both joints shall permit movement in the same plane and the same direction through an angle of 90o with a 0o to +10o tolerance.
